Assignment 8, CPS801

Due date: During the Lab of  March 19th





1-Redesign the page table of the computer with 64-bit virtual address and 4 KB pages (question 2 of assignment 7)  by using inverted page table and explain advantages and disadvantages of this design. For each memory request describe how inverted page table is searching. Assume the computer has 256 MB physical memory.(1 mark)

2-A computer has four page frames. The time of loading ,time of last access, and the R and M bits for each page are as shown below(The times are in clock ticks):



Page

Loaded

Last ref

R

M

0

126

279

0

0

1

230

260

1

0

2

120

272

1

1

3

160

280

1

1



A)Which page will NRU replace?

B)Which page will FIFO replace?

C)Which page will LRU replace?

D)Which page will second chance replace?

(1 mark)


3- Run program Example 9.3 with offset 30 command line value and record the output and briefly explain the function of the program.
(0.5 mark)

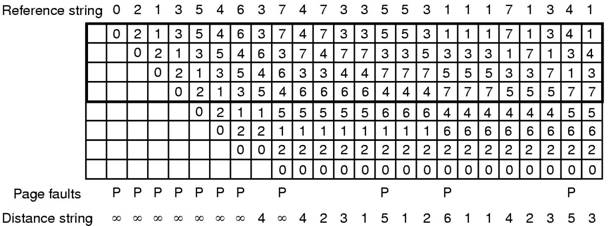

4- (Programming question) Write a program (use Unix compatible environment) that simulates a paging system. At the start of program, the user should be asked to choose a page replacement algorithm, choosing from LRU and FIFIO. On each cycle, read the number of referenced page from a file by using appropriate file system calls. Generate a listing similar to following figure, except rotated 90 degrees so that each new page reference increases  the length of output file by one line.

Hint: Ignore distance string for now but at the end compare the two page replacement algorithms by reporting the page faults for each of the FIFO and LRU. Your input file contains the page references (for example 0,2,1,3 and etc.) and by using proper data structure (for example array, stack, queue or etc.) generate the resulting output  similar to the following: (2.5 marks)
For example for LRU the output is:
0: 0

2: 2 0
1: 1 2  0
3: 3 1 2 0
5: 5 3 1 2 | 0

4: 4 5 3 1 | 2 0
............










Submission:
